Mobile tilt-down flexible screw conveyor system for manual dumping, bulk bag discharging

Published: 24-Jan-2024

The new conveyor system also transfers material to elevated downstream process equipment and storage vessels at multiple plant locations, dust free

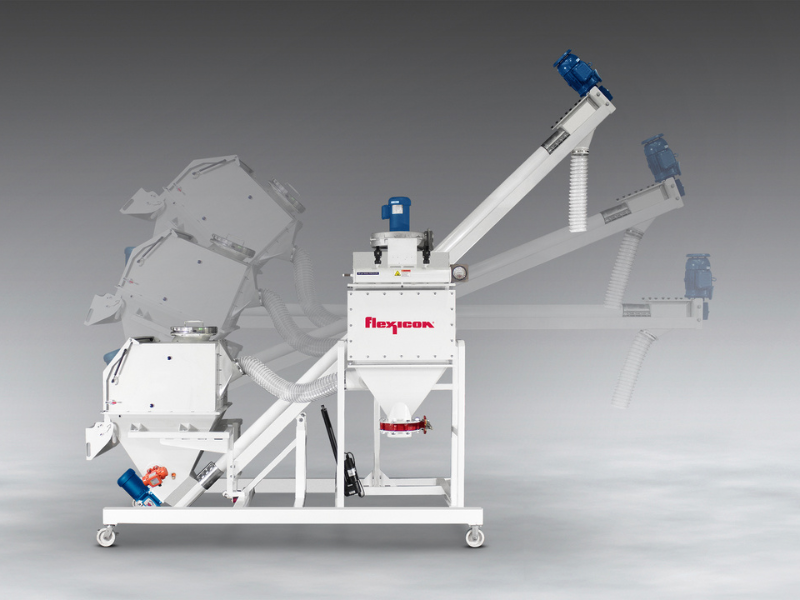

A new Tilt-Down Flexible Screw Conveyor System is mounted on a portable base with a multi-purpose hood and an integral dust collector. This allows manual dumping from handheld sacks as well as discharging from bulk bags, subsequently transferring material to elevated downstream process equipment and storage vessels at multiple plant locations, dust free.

Discharging from bulk bags requires the user's forklift or plant hoist to suspend the bag above the dust hood, allowing the bag spout to be cinched by an iris valve, untied and then released gradually to prevent uncontrolled bursts of material from the bag.
Alternately, hand-held sacks can be rested on a fold-down support tray, slit open, and manually
dumped into the hopper.
Airborne dust generated by either process is drawn away from the operator's area through the dust hood by a side-mounted BAG-VAC ™ dust collector vented from the hood. To maintain operational efficiency, reverse-pulse air jets on a timed cycle remove accumulated dust build-up on filter surfaces, dropping it to the bottom of the dust collector for later removal and disposal.

The flexible screw conveyor features an inner stainless-steel screw of specialised geometry to propel both free- and non-free-flowing bulk materials including products that pack, cake, smear, seize or fluidise, with no separation of blends.

The support boom and conveyor assembly can be tilted down to manoeuvre through standard doorways and aisles, and around corners for use anywhere in the plant. A low centre of gravity maximises stability during operation and when rolling the unit between multiple processing tasks and wash-down stations.

When fully lowered, the tilt-down mechanism positions the clean-out cap of the conveyor tube higher off the plant floor, and the conveyor's discharge closer to the floor, allowing removal and re-insertion of the flexible screw from standing height during cleaning and inspection.

The unit is constructed of carbon steel with a durable industrial coating. All stainless steel construction with material contact surfaces finished to sanitary standards is also available.

Flexicon also manufacture tubular cable conveyors, pneumatic conveying systems, bulk bag dischargers, bulk bag conditioners, bulk bag fillers, drum/box/container tippers, weigh batching and blending systems, and engineered plant-wide bulk handling systems with automated controls.

For information contact Flexicon Europe Ltd, +44 (0)1227 374710,,
