An active chilled beam cooling system played a key role in delivering an expected 20% reduction in cooling and ventilation energy consumption at the new Genomic Science Building at the University of North Carolina (UNC) in Chapel Hill, North Carolina.
The system was developed by Affiliated Engineers, Inc. (AEI) in collaboration with the project architect, Skidmore, Owings, and Merrill LLP (SOM). Engineers at Affiliated Engineers, Inc. (AEI) used Flomerics" Flovent computational fluid dynamics (CFD) software to optimise the cooling system and maximise the energy savings.
The Genomic Science Building is a US$125m research laboratory that will provide approximately 210,000ft2 of classrooms, laboratories and offices Construction is due to start in February 2009 and the projected construction completion date is February 2011.
To evaluate the viability of the chilled beam approach, AEI needed first to determine the type and size of chilled beam system that would be needed to cool the laboratory and then estimate the amount of energy that this system would consume. AEI used Flovent CFD to simulate the operation of the HVAC system.

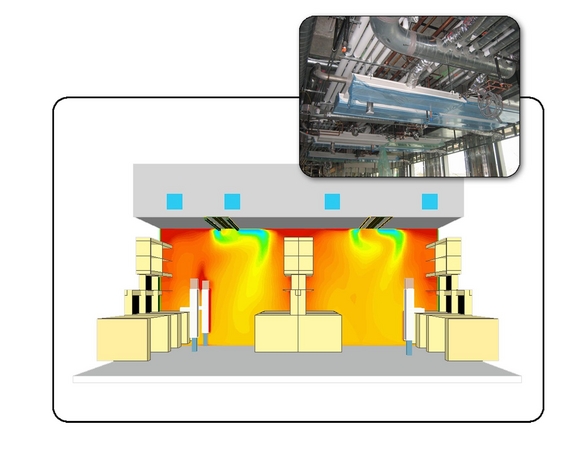

In lieu of modelling a whole laboratory, a representative laboratory bench module was selected to reduce input and simulation time. An active beam cooling system was modelled that has two airflows: the airflow that is forced through the beam nozzles and the airflow induced by the lower temperature and negative pressure in the beam.
The goal was to design an active chilled beam system that would meet the temperature requirements for the space while reducing overall energy consumption. A variety of active beam scenarios were analysed and a design that met this objective was identified. .
AEI then used the resulting chilled beam capacities and ventilation requirements to inform the input to an annual energy consumption simulation for the laboratory space. In addition to the chilled beam and ventilation system descriptions, the energy simulation includes annual operational schedules, internal loads, and weather data.
The energy analysis predicted that the energy consumption of the laboratory conditioning systems will be about 20% lower than a baseline comparison for conventional designs based on American Society of Heating, Refrigeration and Air-Conditioning Engineers (ASHRAE) Standard 90.1-2004. These improvements played a key role in the energy-efficient design of the new building, which is being designed to obtain a Silver certification rating under the Leadership in Energy & Environmental Design (LEED) program from the United States Green Building Council when it is completed.
