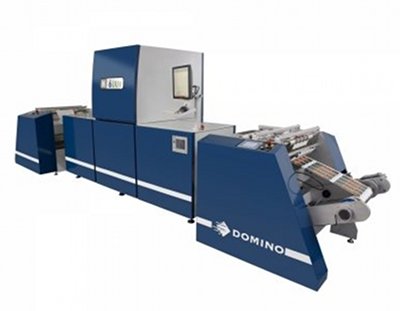

Domino demonstrates ‘smart’ N600i digital label press
At drupa 2012 from 3–16 May
The N600i combines a print speed approaching that of flexo with the flexibility of digital printing to deliver improved profitability and a reduction in production costs, the firm says.
The UV curable N600i offers a 600dpi print resolution as well as up to four greyscale levels and uses one of the smallest drop sizes (6pl) to deliver high quality output onto coated paper and plastic label stocks. This makes the N600i particularly suited to variable, localised label applications including language changes, personalisation and special promotional packaging initiatives.
Operating at speeds up to 75m (246ft) a minute, the N600i offers the fast change-over and short run length options traditionally associated with digital technology. It also has the ability to print up to 1,500m²/hr (16,000ft²/hr), which makes long production runs cost-effective.
The N600i on display at the show has been enhanced by a host of i-Tech intelligent Technology smart features. These automated functions minimise or even eliminate the need for engineering intervention and make routine operator functions as fast, simple and intuitive as possible, thereby addressing the growing demand for the highest levels of Overall Equipment Effectiveness (OEE).
‘The design of the N600i combines a deep and long established understanding of inkjet technology with the need to address the increasing challenges presented by brand owners,’ says Philip Easton, director of Domino’s Digital Printing Solutions.
‘Not only do they want to achieve more direct, localised and personalised communication with their customers, they are also looking to achieve efficiency savings, whether through greater production efficiencies or a reduction in stock inventories and waste.’
Integral with the N600i is Domino’s i-Tech CleanCap automated cleaning and capping station, which automates printhead cleaning and eliminates the need for regular manual intervention. Further reducing maintenance downtime, its ActiFlow ink circulating system ensures that the ink is always circulating around the printhead even when not in production, ensuring optimal print quality when production restarts. In addition, its micro-motor StitchLink controller technology allows for precise head alignment resulting in a perfect stitch across the print width.
‘The N600i is an excellent fit between the capabilities of digital printing and the underlying requirements of the brand owner,’ adds Easton.
‘Our objectives in the development of our original N-Series technology has been to perfect the flexibility of digital with leading edge productivity and low cost of operation, and our latest generation N600i is the culmination of our commitment to deliver a refined, workable solution to market.’
The N600i is available in a reel-to-reel configuration while its modular frame allows for future scalability. It is integrated with the latest EskoArtwork digital front end for seamless integration into existing customer workflow solutions.
