GEMÜ has developed a new EPDM diaphragm for use at high temperatures and steam for the pharmaceutical and biotechnological industries.
The new EPDM diaphragms feature improved thermal load capacity. Steam tests at GEMÜ and at customers in production have revealed potentially up to three times longer service life in comparison with other diaphragms of the same design. An additional sealing bead has been integrated on the top, which further improves external sealing.
The new diaphragm is FDA-conforming in accordance with title 21 paragraph 177.2600. It was tested by an independent institute in accordance with USP Class VI, is free from animal ingredients and is ROHS conform. At the same time, the design places emphasis on meeting the demands made on the EHEDG-certified original GEMÜ sealing system. The compound is peroxide- cured and all compounding is carried out according to the strict quality specifications of GEMÜ. This ensures a fully integrated process and quality control.

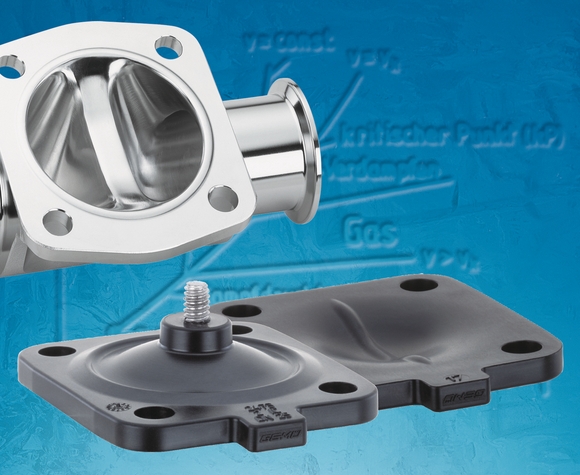

The diaphragm is available in all sizes MG 8 - 100 (DN 4 - 100). The size 8 diaphragm is pushed into the compressor as current designs, the diaphragm sizes 10 - 100 are screwed positively into the compressor with a threaded pin. The new diaphragm fits easily in to the existing modular valve system and can be used and retrofitted for all GEMÜ diaphragm valves.
GEMÜ EPDM diaphragms are a good alternative to PTFE diaphragms. The diaphragms can be changed in both directions depending on the specific process conditions and preference of the user. The owner of a system can therefore react flexibly to a product or process changeover without expensive, major conversion measures.
