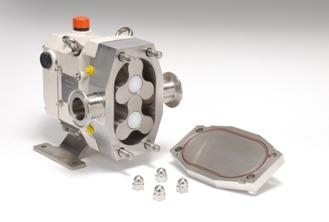

AxFlow introduces hygienic positive displacement pump
The UK distributor of the Waukesha external circumferential piston pump has added the MDL Series
With nine models available giving capacities up to 124m³/hr and differential pressures of 10 bars, this new rotary lobe positive displacement pump has been developed for medium duty sanitary applications within the pharmaceutical industries.
Featuring two stainless steel triple lobe rotors the MDL Series pump provides gentle product handling characteristics, making it ideally suited to handling viscous, non-abrasive and sensitive fluids where low shear is of major importance. Being a lobe pump, it is easy to clean because there are few fluid cavities where bacteria can grow, so it is suitable for CIP and has been designed and engineered to conform to EHEDG certification for the European market.
AxFlow says that the MDL Series has been developed specifically to satisfy the many middle range duties and applications in the sanitary products and food processing industries that need a positive displacement pump, but do not justify the costs of high-end specification pumps. The MDL fills a much needed gap in the market without compromising on operating integrity and quality.
In developing the MDL Series WCB has drawn on the proven technologies within its product line in order to provide a pump that offers optimum performance and versatility. The four-way mounting gear case, including vertical alignment of ports, gives users greater design freedom when it comes to installation of the pump. The design also means that the pump is easy to disassemble/assemble for service and maintenance. This is further aided by the attention given to the design of the shaft, which utilises a unique rotor attachment that provides repeatable rotor positioning and solid torque transmission. Furthermore, the design of the gear box ensures that there is no cross-contamination of the lubricating oil into the product zone.
AxFlow is offering the MDL pump with an economical simple single mechanical seal as standard, but where required there is the option of a flushed double mechanical seal that can run dry indefinitely.
You may also like
You need to be a subscriber to read this article.
Click here to find out more.
Click here to find out more.
Shear-sensitive pumping
Read moreMany pharmaceuticals products require pumps that can handle shear-sensitive liquids as well as liquids that can have an adverse affect on mechanical seals. The oscillating eccentric piston pump principle produces the pumping performance of a rotary positive displacement pump, but its action is far more sensitive, making it suitable for applications where shear and potential leakage are major issues. Cleaning and sterilising can also be carried out in place.
Trending Articles
You may also like
You need to be a subscriber to read this article.
Click here to find out more.
Click here to find out more.
Manufacturing
Shear-sensitive pumping
Many pharmaceuticals products require pumps that can handle shear-sensitive liquids as well as liquids that can have an adverse affect on mechanical seals. The oscillating eccentric piston pump principle produces the pumping performance of a rotary positive displacement pump, but its action is far more sensitive, making it suitable for applications where shear and potential leakage are major issues. Cleaning and sterilising can also be carried out in place.
You need to be a subscriber to read this article.
Click here to find out more.
Click here to find out more.
Manufacturing

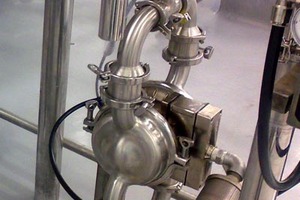

Pumps for biopharmaceuticals
