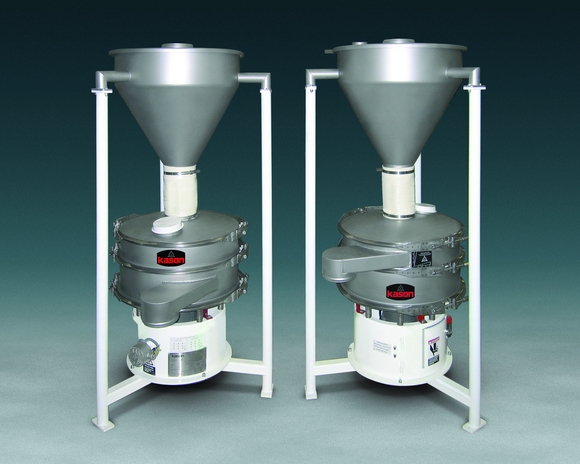

A new Kason 3-in-1 System combines a Vibroscreen vibratory screener, a batch hopper, and an integral feed control device that regulates the flow of material into the screener.
The system is intended for applications that require screening in batches.
The feed control device consists of a circular disc positioned below the flexible connector at the screener's inlet, perpendicular to the flow of material. The diameter of the disc is smaller than the inside diameter of the inlet, forming an annular gap through which material can pass.
Because the disc vibrates with the screener lid to which it is affixed, the flow of material through the gap remains uniform. Interchangeable discs in a range of diameters are provided to achieve various feed rates.
The screening assembly is suspended on springs that allow it to vibrate freely while minimising power consumption and preventing vibration transmission to the floor. Beneath the assembly is an imbalanced-weight, gyratory motor that creates multi-plane inertial vibration for the purpose of controlling the flow path of material on screen surfaces, and maximising the rate at which material passes through the screen.
Material is fed through the feed control device onto the centre of the screen, causing particles larger than screen apertures to travel across the screen surface in controlled pathways, and exit through a discharge spout located at the screen's periphery; particles smaller than screen apertures pass through the screen onto a domed pan and exit through a lower discharge spout.
Vibration of the screener is isolated from the rigidly mounted surge hopper and support frame by means of a flexible connector.
Vibroscreen stainless steel vibratory screeners available with the feed control device range in diameter from 460 to 1016 mm and are offered with single or multiple screening decks, separating particles in one to five predetermined sizes from 50mm to 25µm.
