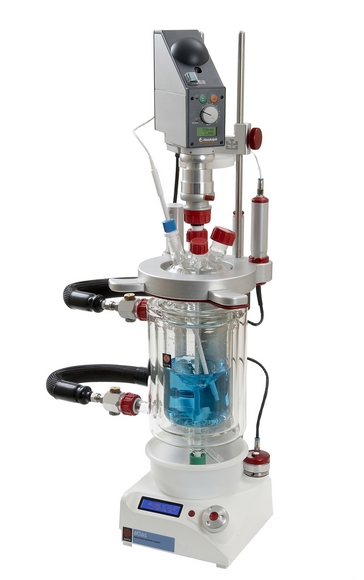

Syrris, a chemistry automation product innovator based in Royston, near Cambridge, UK, has introduced the Atlas High Torque Stirrer Adaptor for Heidolph stirrers.
Providing an alternative to the Atlas Scorpion Overhead Stirrer, this adaptor can incorporate third party instrumentation. It enables effective mixing, homogenising and re-circulating of high viscosity substances with torque feedback.
Consisting of support rods, a factory-fitted quick adaptor and a support post, all components required to make the Atlas system compatible with the Heidolph stirrer are supplied. The support rods fit directly into the top of the jacketed vessel clamp to hold the stirrer in place while aligning the overhead stirrer with the stirrer seal and guide. The support post then replaces the Atlas Scorpion Overhead Stirrer post.
When used in combination with the high torque adaptor, the Heidolph Control Overhead Stirrer is available with speeds up to 1000rpm and a maximum peak overload torque of 40 Newton centimetres (Ncm) or a continuous torque of 20Ncm with feedback. The entire system can be controlled via the front panel of the stirrer or via the Atlas Software and Atlas Port.
