Researchers led by Daniel Kohane at the Children's Hospital Boston, Mass. US, have devised a drug delivery solution that combines magnetism with nanotechnology to make the delivery switch on and off as required.

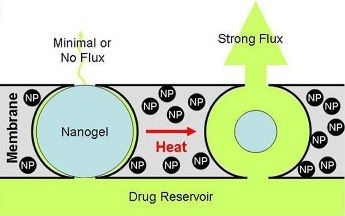

The team created a small implantable device, less than 1.5cm in diameter, that encapsulates the drug in a specially engineered membrane, embedded with nanoparticles composed of magnetite, a mineral with natural magnetic properties. When a magnetic field is switched on outside the body, near the device, the nanoparticles heat up, causing the gels in the membrane to warm and temporarily collapse. This opens up pores that allow the drug to pass through and into the body. When the magnetic force is turned off, the membranes cool and the gels re-expand, closing the pores back up and halting drug delivery. No implanted electronics are required.
The device, which Kohane's team is continuing to develop for clinical use, is described in the journal Nano Letters, published online September 8, 2009.
"A device of this kind would allow patients or their physicians to determine exactly when drugs are delivered, and in what quantities," said Kohane, who directs the Laboratory for Biomaterials and Drug Delivery in the Department of Anesthesiology.
In animal experiments, the membranes remained functional over multiple cycles. The size of the dose was controllable by the duration of the "on" pulse, and the rate of release remained steady, even 45 days after implantation.
Testing indicated that drug delivery could be turned on with only a 1 to 2 minute time lag before drug release, and turned off with a 5 to 10 minute time lag. The membranes remained mechanically stable under tensile and compression testing, indicating their durability, showed no toxicity to cells, and were not rejected by the animals' immune systems. They are activated by temperatures higher than normal body temperatures, so would not be affected by the heat of a patient's fever or inflammation.
The study was funded by the National Institutes of Health's National Institute of General Medical Sciences (NIGMS). Alison Cole, who oversees anesthesia grants, said: "While some distance away from use in humans, this technology has the potential to provide precise, repeated, long-term, on-demand delivery of drugs for a number of medical applications, including the management of pain.
